Tungsten Carbide is an important member of the class of inorganic compounds of carbon. It is used alone or with 6 to 20 percent of other metals to impart hardness to cast iron, cutting edges of saws and drills, and penetrating cores of armour-piercing projectiles.
Tungsten Carbide
Cas No. | 12070-12-1 |
Chemical formula | WC |
Molar mass | 195.85 g · mol−1 |
Appearance | Grey-black lustrous solid |
Density | 15.63 g/cm3 |
Melting point | 2,785–2,830 °C (5,045–5,126 °F; 3,058–3,103 K) |
Boiling point | 6,000 °C (10,830 °F; 6,270 K) at 760 mmHg |
Solubility in water | Insoluble |
Solubility | Soluble in HNO3, HF. |
Magnetic susceptibility (χ) | 1·10−5 cm3/mol |
Thermal conductivity | 110 W/(m·K) |
◆ Tungsten Carbide Powder Specifications
Type | Average Particle Size Range(µm) | Oxygen Content (% Max.) | Iron Content (% Max.) |
04 | BET:≤0.22 | 0.25 | 0.0100 |
06 | BET:≤0.30 | 0.20 | 0.0100 |
08 | BET:≤0.40 | 0.18 | 0.0100 |
10 | F.s.s.s:1.01~1.50 | 0.15 | 0.0100 |
15 | F.s.s.s:1.51~2.00 | 0.15 | 0.0100 |
20 | F.s.s.s:2.01~3.00 | 0.12 | 0.0100 |
30 | F.s.s.s:3.01~4.00 | 0.10 | 0.0150 |
40 | F.s.s.s:4.01~5.00 | 0.08 | 0.0150 |
50 | F.s.s.s:5.01~6.00 | 0.08 | 0.0150 |
60 | F.s.s.s:6.01~9.00 | 0.05 | 0.0150 |
90 | F.s.s.s:9.01~13.00 | 0.05 | 0.0200 |
130 | F.s.s.s:13.01~20.00 | 0.04 | 0.0200 |
200 | F.s.s.s:20.01~30.00 | 0.04 | 0.0300 |
300 | F.s.s.s:>30.00 | 0.04 | 0.0300 |
◆ Tungsten Carbide Powder Type
Type | UMTC613 | UMTC595 |
Total Carbon(%) | 6.13±0.05 | 5.95±0.05 |
Combined Carbon(%) | ≥6.07 | ≥5.07 |
Free Carbon | ≤0.06 | ≤0.05 |
Main Content | ≥99.8 | ≥99.8 |
◆Chemical Component Impurities of Tungsten Carbide Powder
Impurities | % Max. | Impurities | % Max. |
Cr | 0.0100 | Na | 0.0015 |
Co | 0.0100 | Bi | 0.0003 |
Mo | 0.0030 | Cu | 0.0005 |
Mg | 0.0010 | Mn | 0.0010 |
Ca | 0.0015 | Pb | 0.0003 |
Si | 0.0015 | Sb | 0.0005 |
Al | 0.0010 | Sn | 0.0003 |
S | 0.0010 | Ti | 0.0010 |
P | 0.0010 | V | 0.0010 |
As | 0.0010 | Ni | 0.0050 |
K | 0.0015 |

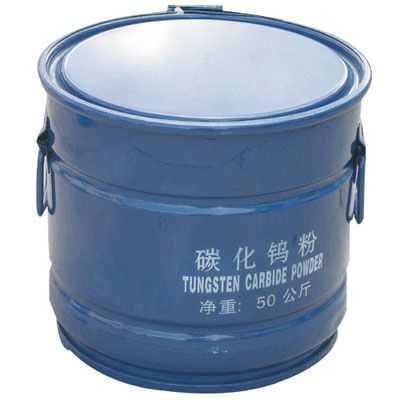

Packing: In iron drums with double inner sealed plastic bags of 50kgs net each.
◆ Cobalt-Tungsten Carbide spray powder (agglomeration sintering)
Symbol | Hardness(Hv) | Chemical Composition | Typical Characteristic |
UM-WC-Co 08 | 1200 | Co8.0,C5.5,W (Bal) | The coating surface is dense, hard and wear-resistant |
UM-WC-Co 12 | 1200 | Co12.0,C5.2,W (Bal) | The abrasion resistance is strong at 550℃, which can increase the corrosion resistance and wear resistance |
UM-WC-Co 17 | 1200 | Co17.0,C4.9,W (Bal) | Compared with the WC-C12 series, the cobalt content is increased, making the toughness, impact strength and ductility more excellent C-12Co,provide better toughness,impact strength and malleability |
UM-WC-Co 10Cr4 | 1200 | Co9.5,Cr4.0,C5.1 6,W(Bal) | Compared with the WC-Co series and the WC-Ni series, its antioxidant capacity and corrosion are greatly improved |
Comment: Typical use cases are for supersonic spraying.
Comment: We also customize Nickel--Tungsten Carbide spray powder (agglomeration sintering) product range for our customers in bulk: WC-Ni10/12/15/17 and WC-Cr20Ni7.
What is Tungsten Carbide Powder used for?
Tungsten Carbides have a wide range of application in many industry sectors such as metal machining, wear parts for mining and oil industries, metal forming tools, cutting tips for saw blades and have now expanded to include consumer items such as wedding rings and watch cases, plus the ball that is in many ball point pens.
